DigiMax DP88 | 八通道A/D/A转换器(带遥控)

产品简介

DigiMax DP88 是 DigiMax 产品线的最新创新,提供数字控制、模拟前置放大器和无与伦比的数字转换,最高可达 96 千赫。与它的前辈一样,DigiMax DP88 提供了连接性、灵活性和专业的音质,使其完美地适合任何工作室环境。

下一代的前置放大器/转换器。


十多年来,DigiMax 系列的前置放大器/转换器已经被全世界无数的录音棚所依赖。DigiMax DP88 是 DigiMax 产品线的最新创新,提供数字控制、模拟前置放大器和无与伦比的数字转换,最高可达 96 千赫。与它的前辈一样,DigiMax DP88 提供了连接性、灵活性和专业的音质,使其完美地适合任何工作室环境。


A smooth trip from analog to digital.

The DigiMax DP88 is equipped with audiophile-grade, Burr-Brown processors to deliver top-quality digital conversion up to 96 kHz. These converters provide 118 dB of dynamic range and are backed by a boast-worthy clock with sub-50 picosecond jitter to capture complex musical harmonics smoothly and naturally. You’ll hear every breath, transient, and detail of a performance in your recordings.


XMAX preamps, now with remote control.

XMAX preamps provide high headroom, low noise, wide dynamic range, and extended frequency response. The resulting musicality and transparency has made this design an industry favorite. In 1995, PreSonus® patented digital control over analog circuits for our first product. Building on this legacy, we created a separate digital volume-control circuit ahead of our award-winning analog XMAX preamp design, providing the convenience of digital recall without sacrificing fidelity. The DP88 is equipped with eight of these digitally controlled XMAX preamps, making it a first-rate front end or expander for any studio.



A natural extension for the Studio 192 and Studio 192 Mobile.

Although the DigiMax DP88 is the perfect companion for any audio interface with ADAT I/O, it was designed to seamlessly extend the analog I/O of PreSonus® Studio 192 and Studio 192 Mobile audio interfaces. When the DP88 is connected to a Studio 192 or Studio 192 Mobile via ADAT, its eight XMAX analog preamps are fully remote-controllable from PreSonus’ Studio One® 3 DAW, Studio One Remote for iOS®, and UC Surface control software. These capabilities extend the interface’s analog inputs sonically and functionally.


Easy MIDI control.

While we can’t provide the same level of integration with every audio interface that we can with the Studio 192 and Studio 192 Mobile, the DigiMax DP88 is equipped with MIDI I/O for easy remote control from anywhere. By using simple MIDI CC messages to control level, phantom power, and direct ADC input, the DigiMax DP88 fits into any DAW environment. Simply connect it to your MIDI interface, enable it as a MIDI device in your DAW, and start remote controlling your preamps and recalling preamp settings with your audio sessions.



Flexible I/O makes setup a snap.

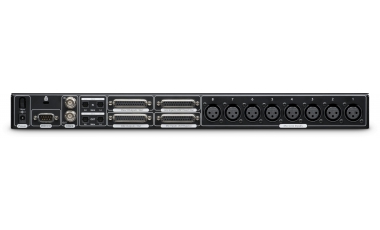

Flexible rear-panel I/O makes it easy to incorporate the DigiMax DP88 into any studio environment. Access the preamps using XLR or DB25 connections. Eight direct, analog-to-digital, line-level inputs are available on DB25 and can be accessed per channel with a front-panel button, allowing you to keep all of your gear connected at the same time. Eight balanced DAC outputs are provided via DB25 so you can expand your interface’s outputs for monitor mixes or speaker switching. You also get eight balanced direct outputs on DB25 and eight channels of ADAT/dual SMUX optical I/O up to 96 kHz.


The legend remade.

The DigiMax DP88 provides professional sound quality and features previously unavailable in its class: Eight digitally-controlled, Class A microphone preamps; top-quality Burr-Brown converters with 118 dB of dynamic range; a boast-worthy digital clock with sub-50 picosecond jitter; and flexible connection options. Like its DigiMax-series predecessors, the DigiMax DP88 is sure to set a new standard for eight-channel converters.


技术指标

麦克风前置放大器(XLR平衡)

类型XLR 母 & DB25 母, 远程平衡
最大输入电平 (小.增益, 1 kHz @ 0.5% THD+N)+12 dBu, ±0.5 dB
增益控制范围60 dB, ±1 dB
频率响应 (A-D)10 Hz 至 40 kHz, ±0.2 dB
动态范围 (小. 增益, A加权)> 110 dB
动态范围 (中. 增益, 未加权)> 105 dB
THD+N (小. 增益, A加权)< 0.005%
输入阻抗1600 Ω
EIN (+55 dB 增益, 150Ω 输入, 20 Hz-22 kHz, A加权)< -128 dBu
共态抑制比 (1 kHz, +55 dB 增益)> 55 dB
幻想电源+48V,  ±3V, > 8 mA 每通道


线路输入

类型DB25 母, 平衡
最大输入电平 (小. 增益, 1 kHz @ 0.5% THD+N)+22 dBu, ±0.5 dB
频率响应 (A-D)20 Hz 至 20 kHz, ±0.2 dB
动态范围 (小. 增益, A加权)> 114 dB
动态范围 (中. 增益, 未加权)> 105 dB
THD+N (1 kHz, -1 dBFS, A加权)< 0.005%
输入阻抗10 kΩ
串扰 (1 kHz, 通道至通道)< -80 dB


ADC直通线路输入

类型DB25 母, 平衡
最大输入电平 (小. 增益, 1 kHz@0.5% THD+N)+22 dBu, ±0.5 dB
频率响应 (A-D)20 Hz 至 20 kHz, ±0.2 dB
动态范围 (小. 增益, A加权)> 118 dB
动态范围 (中. 增益, 未加权)> 105 dB
THD+N (1 kHz, -1 dBFS, A加权)< 0.005%
输入阻抗10 kΩ
串扰 (1 kHz, channel-to-channel) < -80 dB


DAC输出

类型DB25 母, 平衡
最大输出电平+24 dBu, ±0.5 dB
频率响应20 Hz to 20 kHz, ±0.2 dB
动态范围 (A加权)> 120 dB
THD+N (1 kHz, -1 dBFS, 未加权) < 0.005%
输出阻抗51 Ω
串扰 (1 kHz, channel-to-channel)< -80 dB


数字音频

连接类型ADAT / 双 SMUX
ADC 动态范围 (A加权, 48 kHz)118 dB
DAC 动态范围 (A加权, 48 kHz)118 dB
比特深度24 bits
内部支持采样率44.1, 48, 88.2, 96 kHz


时钟

抖动<50 ps RMS (20 Hz 至 20 kHz)
抖动衰减>60 dB (1 ns in => 1 ps 出)


信号电平LED

信号 1-50 dBFS
信号  2-30 dBFS
信号 3-20 dBFS
信号  4-10 dBFS
信号  5-6 dBFS
信号  6-4 dBFS
信号  7-2 dBFS
爆红-0.5 dBFS
