AudioBox USB 96 | 2x2 USB 2.0 音频接口

产品简介

无论你是音乐家、制作人,还是预算有限的播客,AudioBox USB®96 音频接口都是您合适的选择!这个简单方便的小型音频/MIDI 接口有刚好满足基本录制需求的功能,让您在 24 bit 96 kHz即插即用。

简单、可靠、便携。


无论你是音乐家、制作人,还是预算有限的播客,AudioBox USB®96 音频接口都是您合适的选择!这个简单方便的小型音频/MIDI 接口有刚好满足基本录制需求的功能,让您在 24 bit 96 kHz即插即用。总线供电且为便携而生的 AudioBox USB 96 让录音变得轻松有趣。


Just the right size.

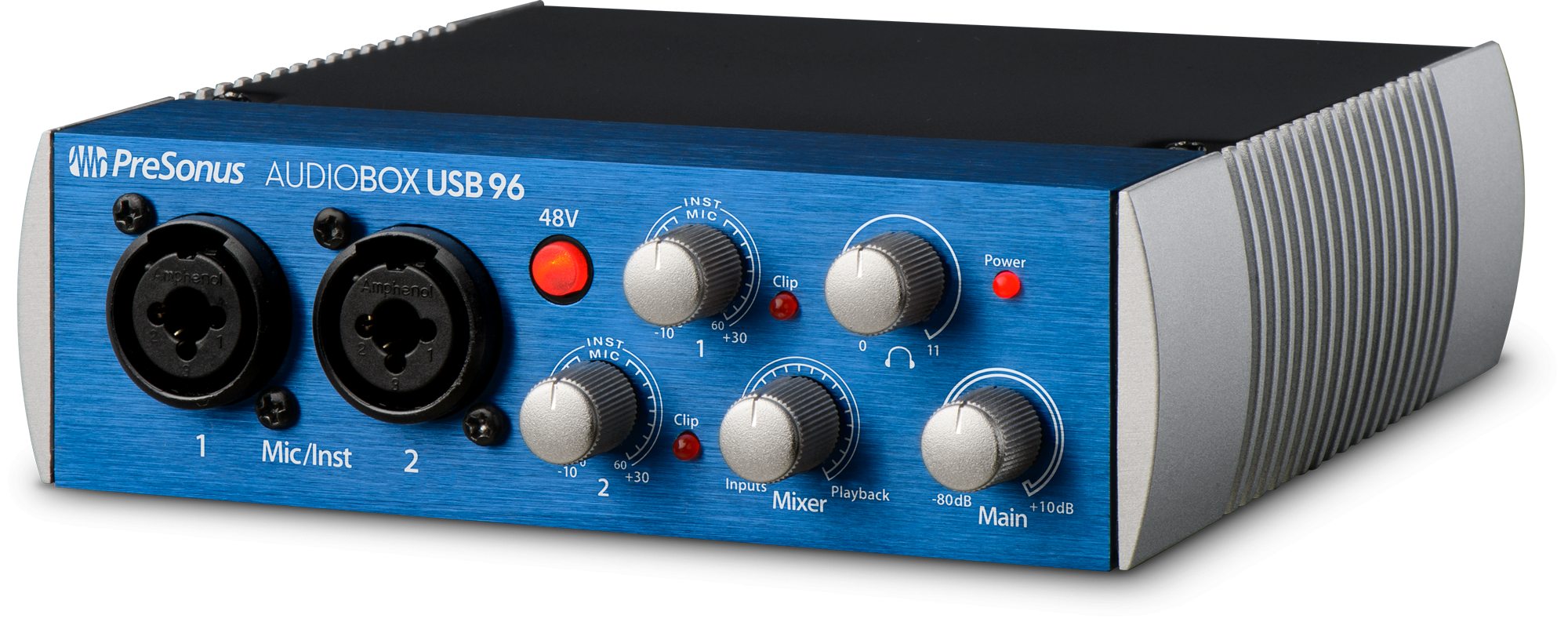

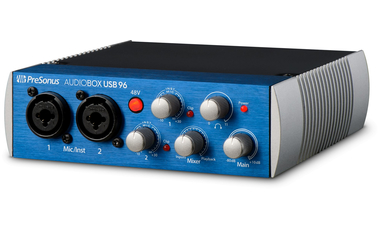

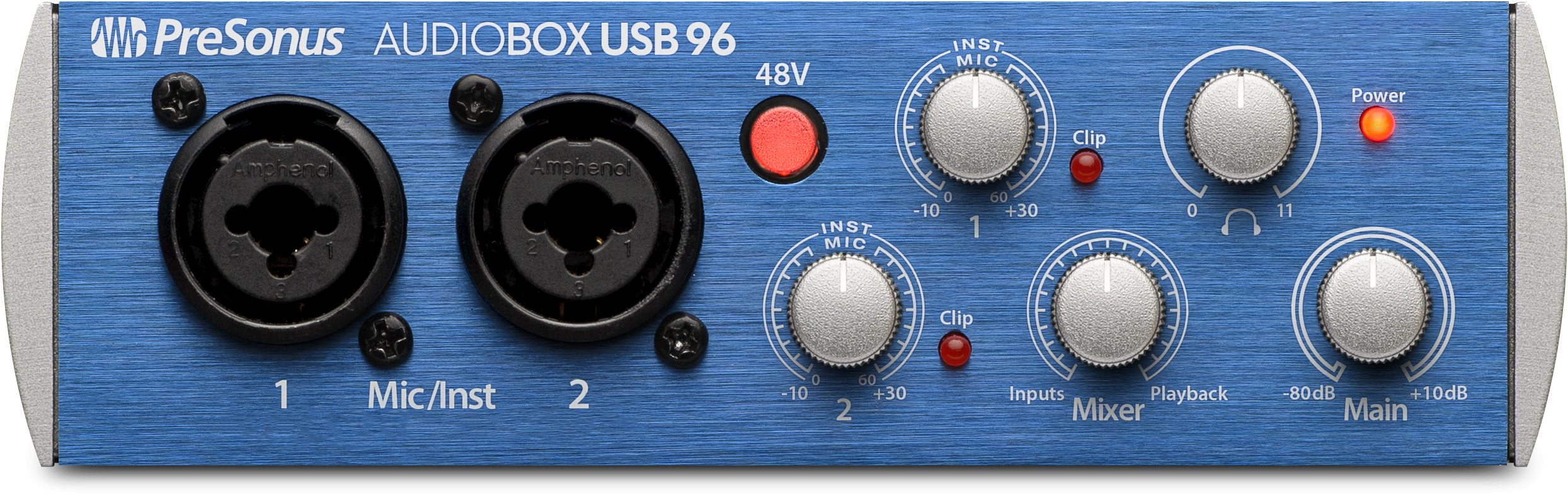

The AudioBox USB 96 audio interface’s two front-panel combo mic/instrument inputs make it ideal for singer/songwriters, podcasters, and guitar or guitar-bass collaborations. Simply connect a couple of mics and you have an easy-to-use stereo recording system. A mix control lets you control the level between the input signal and computer playback, without hearing annoying delays. You also get a pair of balanced line-level outputs, an ultra-loud, crystal-clear headphone out, plus MIDI I/O, so you can connect your favorite synth or MIDI controller. The result is a simple, affordable, mobile recording solution.



Roadworthy and ready to travel.

Here is a mobile audio interface in the best sense of the term. We gave the AudioBox USB 96 a heavy-duty steel chassis so it can take a serious pounding and remain completely reliable. Its screaming-loud headphone output ensures you can hear your music loud and clear, even in noisy locations. And it’s USB 2.0 bus-powered, so you can record with it anywhere you can use a laptop. Simply drop it in your laptop bag or slap it on a tabletop.


World-class recording software included.

While the AudioBox USB 96 audio interface works with virtually all Mac and Windows audio-recording software, it comes with a free license for PreSonus’ Studio One® Artist DAW, giving you a complete recording solution. Built by creative people for creative music production, Studio One is easy to learn and enables you to compose, record, and produce your masterpiece without getting distracted by the tools. Studio One also enjoys a robust online community of enthusiastic and helpful users you can turn to for advice.


Built for the studio and the road.

Whether you're just getting into recording or are a veteran producer who wants to go mobile, the AudioBox USB 96 audio interface will give you great sound in a bus-powered, rugged chassis that's ready to hit the road when you are. The perfect companion for any recording software, the AudioBox USB 96 comes equipped with Studio One Artist to provide you with a complete recording solution right out of the box. Check out the AudioBox USB 96 and Studio One at your favorite PreSonus dealer.


Make your own magic.

At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.


The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).


技术指标

产品特性

基本

  • 双重功能前面板输入通道,每一通道都带有高品质的麦克风放大器

  • 2 路 combo 麦克风/乐器输入

  • 独立的通道调节,增益范围从 0 至+35dBu

  • 48V幻相供电支持电容麦克风

  • Mixer 控制(混合输入信号和电脑回放流,实现零延迟监听)

  • 耳机接口,带有电平控制

  • 主输出电平控制

  • 每通道的 LED clip 显示

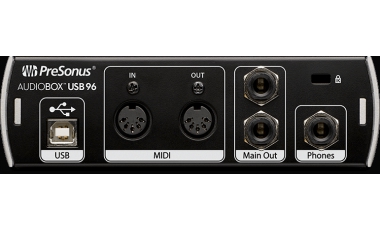

输入/输出

  • 1 个 USB 2.0 接口

  • 2 路 combo XLR 麦克风/乐器输入

  • 2 路平衡主(左/右)线路输出

  • 1 路立体声耳机输出

  • MIDI 输入/输出

数字

  • 24-bit,44.1, 48, 88.2 及 96 kHz 采样率

  • 专业级 A/D/A 转换器 (+105 dBu 动态范围)

  • 内置 mixer,零延迟监听

  • 兼容几乎所有 Mac 和 Windows 平台录音软件

内附软件

  • Studio One 3 Artist

物理属性

  • 1/3U 机架可安装式 (可选 3UMR 机架安装系统)

  • 全金属地盘和金属旋钮的坚固构造

  • 重量只有 5 磅(2.3 千克)

  • 只需通过 USB 供电


电脑系统要求

以下是 AudioBox USB 96 所需求的最低电脑系统配置

Mac

  • Mac OS X 10.8.5 或更高

  • Intel Core Duo 处理器 (Intel Core 2 Duo 或 Intel Core i3 或更高)

  • 2 GB RAM (4 GB 或更高)

Windows

  • Windows 7x 64/x86 SP1 或 Windows 8/8.1 x64/x86 或 Windows 10 x64/x86

  • Intel Core 2 处理器 (Intel Core i3 处理器或更高)

  • 4 GB RAM (8 GB 或更高)

Windows 和 Mac 系统

  • USB 2.0 接口

  • 互联网连接 (用于激活)显示器最低分辨率 1024x768

  • 20 GB 硬盘储存空间

  • 内置或外置 7200 RPM 内存空间,推荐更高


技术规格

话筒前置放大器

类型:XLR 平衡母

频响范围 (±3.0 dB):20 Hz - 20 kHz

输入阻抗(平衡):1200Ω

THD+N ( 未加权, 1 kHz 时 +4 dBu 输出, 单位增益):< 0.008%

S/N 比率 (单位增益, Ref. = +4 dBu, 20 Hz - 22 kHz):> 95 dB

共模抑制比(1 kHz, 55 dB 增益):> 45 dB

增益控制范围(± 1 dB):0 dB - 35 dB

最大输入电平(单位增益, 1 kHz 时 0.5% THD+N):-3 dBu

幻相供电(±2 VDC):+48 VDC

乐器输入

类型:1/4英寸 TS 非平衡母

输入阻抗:0.5 MΩ

线路输出

类型:1/4平衡

输出阻抗:51Ω

耳机输出

类型:1/4英寸 TRS 主动立体声

最大输出:60 mW/通道,60Ω载荷时

频响范围(±1.0 dB):20 Hz - 30 kHz

MIDI I/O

类型:双 5针母 DIN

数字音频

ADC 动态范围(A加权, 48 kHz 采样率):105 dB

DAC 动态范围(A加权, 48 kHz 采样率):105 dB

比特深度:24

0 dBFS时参考电平:+4 dBu

内部采样率选择(kHz):44.1, 48, 88.2, 96

供电:USB 2.0

物理属性

体积:1/3U (钢质底盘)

高度:5.5英寸 (139.7 毫米)

深度:1.75英寸 (44.45 毫米)

宽度:5.5英寸 (139.7 毫米)

重量:5磅 (2.27 千克)
