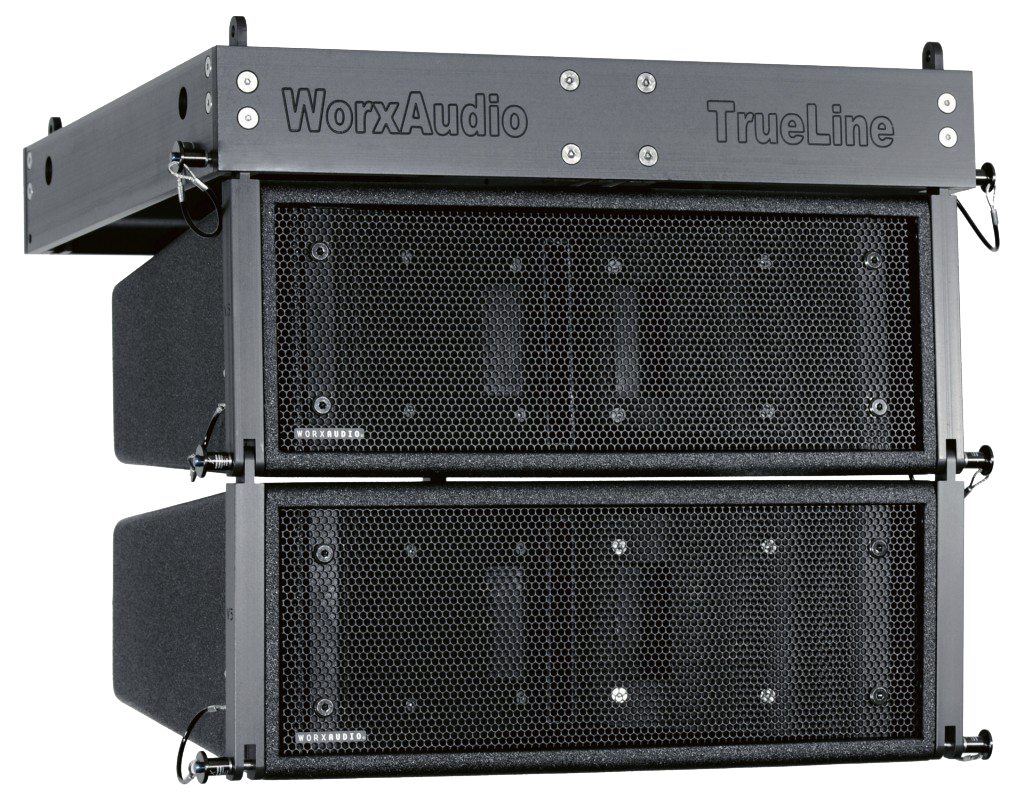

Ultra Compact Line Array Loudspeaker

The V5 is a two-way, high efficiency, line array loudspeaker. It is designed as an ultra compact high performance system to deliver high quality reinforcement of music and speech. It's suitable to a variety of applications including concert audio and corporate A/V presentations of all types—for both portable users and fixed venue installations.

Key features

• Ultra Compact Line Array


• FlatWave Former (Wave Shaping Device)

• "AIM" Acoustic Intergrading Module

• TrueAim Rigging [1° Increments]

• Tour grade enclosure and mechanics

• Controlled Symmetrical Pattern

• FIRmaker Beam Steering

Technical Specifications

System Performance

Frequency Response (-3 dB) *          65 Hz – 18 kHz

Frequency Range (-10 dB)          52 Hz – 20 kHz

Recommended High-Pass           60 Hz – with minimum 24 dB / octave (4th order) Butterworth slope

Nominal directivity (-6 dB)          Horizontal: 120°

Nominal directivity (-6 dB)          Vertical: Dependent upon number of elements and line source curvature

Recommended Crossover Frequency          1.6 kHz (acoustic, active, external DSP)

RMS handling capacity **

• LF: 250W

• HF: 75W

Maximum SPL @ 1 Meter ***          125 dB ([WorxAudio] preset)

Transducers

Components

• LF: 5” (127 mm) x 2; 1.26” (32 mm) voice coil

• HF: 1” Exit (25.4 mm) x 1, 1.75” (44.45 mm) voice coil

Nominal Impedance

• LF = 4 ohms, HF = 8 ohms, self-powered

• LF = 4 ohms, HF = 8 ohms, biamped

• Passive: 16 ohms

Physical

Enclosure          Baltic birch plywood, engineered plastics, and aluminum frame

Finish          Two-part spray catalyzed Polyurea coating on plywood

Grille          16-gauge (0.06 mm) perforated steel, powder-coated finish, black

Environmental          Indoor use only

Connectors          Passive Version: Two (2) parallel-wired NL4 Neutrik® Speakon® connectors

Power Amp Connectors          Self Powered Version: Neutrik® PowerCon (AC) XLR M/F (In/Out) or DANTE

Suspension/Mounting          TrueAim® Tour side rigging; optional array frame accessories

Dimensions          7.25” H x 18” W x 13.45” D (184.15 mm x 457.2 mm x 341.63 mm)

Net Weight          30 lb. (13.60 kg)

Shipping Weight          36 lb. (16.32 kg) - approximate with carton

Product Versions          V5T-Biamp, V5T-Passive, V5T-Powered

Digital Power Amp

• 500W (x1) LF, 500W (x1) HF

• Digital program processing

• XLR I/O-DANTE enabled

• AC powerCON I/O"

Footnotes

*          Frequency response and range measured on-axis with anechoic environment.

**          Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ.

***          Peak level measured at 1m under free field conditions using 10 dB crest factor pink noise with specified ([WorxAudio] preset) and corresponding EQ settings.
