Clear and Present

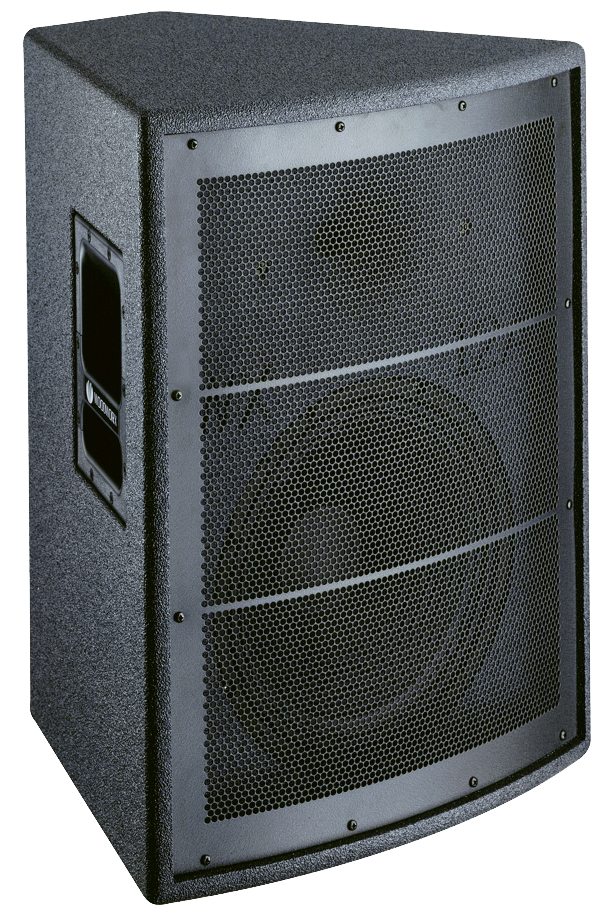

The W-12A is a two-way, high efficiency, passive loudspeaker. It is designed as a compact high performance system for the reproduction of speech and music program material.

The W-12A has a 1-inch exit compression driver coupled to a 75 X 75 degree wooden waveguide horn for reproducing high frequencies, and a 12-inch cone transducer in a tuned enclosure for the low frequencies. A high-quality passive network operates very efficiently, also providing EQ points for a flat frequency response.

Built to last

The W-12A's sturdy multi-ply plywood enclosure and multi-layered catalyzed Polyurea finish is designed to withstand the most demanding applications. A perforated, powder coated steel grille with a high transmission ratio offers excellent protective properties.

The W-12A can be purchased in two versions. The install (W-12Ai) configuration has a passive internal crossover, while the (W-12Ai-P) is self-powered. Both models have a standard 12-point flyware system. Both are available in white, black, or unfinished exterior.

Key features

• Ultra Compact


• Acoustic Waveguide

• Integrated Rigging System

• Flat Phase & Power Response

• Durable Catalyzed Multi-layered Finish

• High Quality, Optimized Passive Crossover

Technical Specifications

System Performance

Frequency Response (-3 dB) *         54 Hz – 17 kHz

Frequency Range (-10 dB)         45 Hz – 19 kHz

Recommended High-Pass         40 Hz – with minimum 24 dB / octave (4th order) Butterworth slope

Nominal directivity (-6 dB)         Horizontal: 75°

Nominal directivity (-6 dB)         Vertical: 75°

Recommended Crossover Frequency         1.6 kHz (acoustic, active, external DSP)

RMS handling capacity **

• LF: 200W

• HF: 60W

Maximum SPL @ 1 Meter ***         124 dB ([WorxAudio] preset)

Transducers

Components

• LF: 12” (304.8 mm) x 1

• HF: 1” Exit (25.4 mm) x 1

Nominal Impedance          LF = 8 ohms, HF = 8 ohms, Self Powered

Passive: 8 ohms

Physical

Enclosure         Baltic birch plywood, engineered plastics, and aluminum frame

Finish          Two-part spray catalyzed Polyurea coating on plywood

Grille          16-gauge (0.06 mm) perforated steel, powder-coated finish, black

Environmental          Indoor use only

Connectors          Passive Version: Two (2) parallel-wired NL4 Neutrik® Speakon® connectors

Power Amp Connectors          Self Powered Version: Neutrik® PowerCon (AC) XLR M/F (In/Out) or Dante

Suspension/Mounting          Internal bracket w/ threaded 0.375” flying points (x12)

Dimensions          23.5” H x 18.25” W x 17.5” D (596.9 mm x 463.55 mm x 444.5 mm)

Net Weight          54 lb. (24.49 kg)

Shipping Weight          62 lb. (28.12 kg) - approximate with carton

Product Versions          12Ai: Passive; 12Ai-P: Powered

Digital Power Amp

• 1000W driving passive 8 ohm

• Digital program processing

• XLR I/O Dante-enabled

• AC powerCON I/O

Footnotes

* Frequency response and range measured on-axis with anechoic environment.

** Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ.

*** Peak level measured at 1m under free field conditions using 10 dB crest factor pink noise with specified ([WorxAudio] preset) and corresponding EQ settings.
