AudioBox iOne | USB/ iPad 音频接口

产品简介

两条输入AudioBox® iOne 可以让你在 Mac、Windows PC 和 iPad 上捕捉你的声音和乐器。只要插上吉他和话筒,你就可以开始创作了!USB 总线供电,并与强大的,带有易于使用的录音软件,AudioBox iOne 让捕捉灵感和创作专业水准的录音变得轻松有趣。

为行走的吉他手和歌手存在的音频接口。

灵感无处不在,带上录音棚,无论你走到哪里都可以录音。两条输入 PreSonus AudioBox® iOne 可以让你在 Mac、Windows PC 和 iPad 上捕捉你的声音和乐器。只要插上吉他和话筒,你就可以开始创作了!USB 总线供电,并与强大的,带有易于使用的录音软件,AudioBox iOne 让捕捉灵感和创作专业水准的录音变得轻松有趣。


Mobile recording made easy.

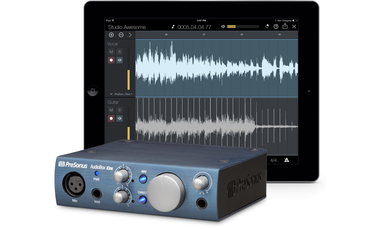

The AudioBox iOne audio interface and its software library make recording your compositions and tracks easy! Record in stereo on your iPad with free Capture™ Duo or record up to 32 tracks with affordable Capture for iPad. Then wirelessly beam your iPad tracks to our award-winning Studio One® recording and production software for Mac or Windows for editing and mixing. Or do the whole project on your laptop with Studio One. Either way, the AudioBox iOne and its software library provide all the tools needed to record on the road and in the studio.


Loud and clear.

To record great-sounding music, you need outstanding preamps and digital converters. And to hear what you’re doing, you need a headphone amp that keeps up with the rest of the design. The AudioBox iOne audio interface delivers it all! We’re famous for our award-winning microphone preamplifiers, and we’ve equipped the AudioBox iOne with a new, sweet-sounding mic preamp that will capture your voice in all its glory. Clean, clear, 24-bit, 96 kHz digital converters and an ultra-loud, crystal-clear headphone output ensures you hear every detail.


Built to travel.

AudioBox iOne is a mobile audio interface in the best sense of the term. It can sit on a tabletop or fit in the pocket of a backpack or laptop bag and works with standard iOS power accessories. Its metal chassis is built like a small tank—yet it weighs just 1.35 pounds (0.63 kg). Wherever your travels take you, whenever your creative muse calls, your AudioBox iOne audio interface will be ready to help you compose and record your masterpiece. Check it out at your favorite PreSonus® dealer.



Make your own magic.

At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.


The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).


技术指标

电脑系统要求:

Windows

  • Windows 7 x64/x86 SP1, Windows 8 x64/x86 或更高

  • Intel Core Duo 处理器(推荐 Intel Core i3 或更高)

  • 4 GB RAM (推荐8 GB或更高)

Mac

  • Mac OS X 10.7.5或更高

  • Intel Core Duo 处理器(推荐Intel Core i3或更高)

  • 4 GB RAM (推荐8 GB或更高)

Windows 及 Mac 系统

  • USB 2.0 接口

  • 注册及下载内置软件所必要的互联网的接入

  • 推荐:内置或外置7200 RPM 储存驱动或更高

  • 显示器分辨率至少达到1280x800

Apple iPad

  • iPad Air, iPad mini with Retina display, iPad (第四代), iPad mini, iPad (第三代), iPad 2

  • iOS 7.0.1 或更高

技术规格

话筒前置放大器

连接:XLR母口,平衡

频率响应(±3dB):10 Hz至40 kHz

输入抗阻(平衡):1200Ω

总谐波失真加噪声(未加权,1 kHz@+4 dBu输出,整体增益):<0.008%

信噪比(整体增益,参考.= +4 dBu,20 Hz至22 kHz):>95 dB

共模抑制比(1 kHz,52 dB增益):>65 dB

增益控制范围(±1 dB):0 dB至52 dB

最大输入电平(整体增益,1 kHz@0.5% 总谐波失真加噪声):+10 dBu

幻相电源(±2 直流电压):+48直流电压

线路输入

连接:四分之一”TRS母口,平衡

输入抗阻:10 kΩ

乐器输入

连接:四分之一”TRS母口,非平衡

输入抗阻:10 MΩ

线路输出

连接:四分之一”TRS母口,平衡

输出抗阻:51Ω

耳机输出

连接:四分之一”TRS主动立体声

最大输出:60 mW/ch. @60Ω 负载

频率响应(±1.0 dB):20 Hz 至 30 kHz

数字音频

ADC动态范围(A加权,48 kHz采样率):105 dB

DAC动态范围(A加权,48 kHz采样率):105 dB

位深度:24

0 dBFS参考水平:±10 dBu

内置可选采样频率范围(kHz):44.1,48,88.2,96

供电:USB供电

物理属性

高度:1.71”(43.5 mm)

深度:5.31”(135 mm)

宽度:5.91”(150 mm)

重量:1.35磅(0.62 kg)
